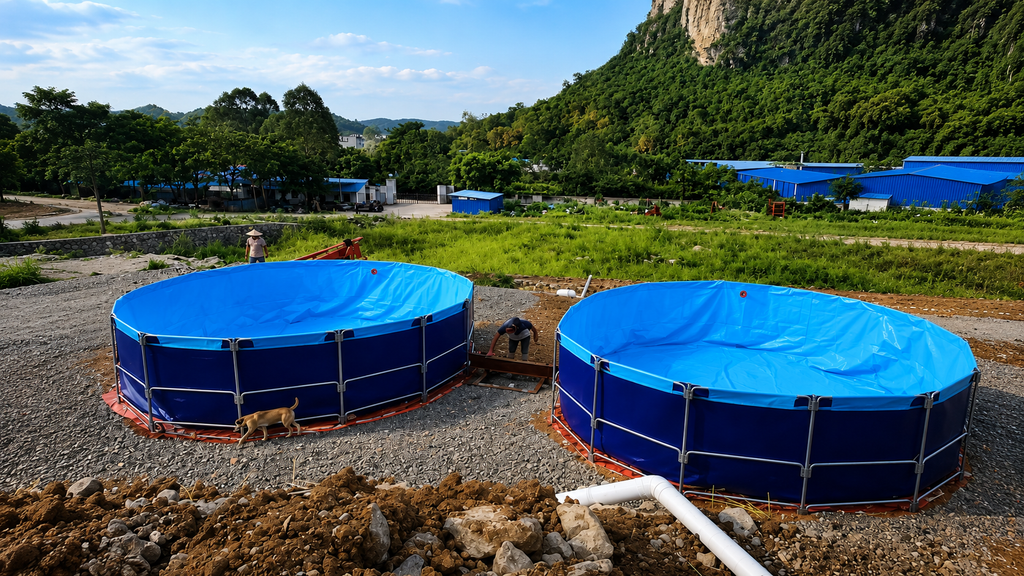

Fish farming success starts with choosing a tank that matches your species, stocking density, available space, and production goals. A tank that is too small can increase stress and oxygen demand, while an oversized system may make water management and feeding less efficient. The RAINBOW Round Fish Tank with Metal Frame and PVC Liner offers a flexible setup with fast installation, easy relocation, and an expected 5–10-year service life, helping aquaculture operators adapt their tank capacity as their operation grows.

Understand the Key Variables That Determine Size

Aquaculture tank sizing depends on four key factors working together:

Species and adult size: Size the tank for the fish's expected adult or harvest weight rather than its juvenile size.

Stocking density: Consider fish weight per cubic metre along with species, aeration, water exchange, and feeding management.

Production cycle: Tank requirements can differ between fast-growing species harvested every few months and year-round breeding operations.

Available space: The round tank design can use space efficiently, but the available footprint still determines the practical tank diameter and placement.

Know Your Tank Size Options

The RAINBOW round PVC fish tank with metal bracket frame is available in a range of standard sizes to suit different operation scales:

Match Tank Size to Target Species

Different species have fundamentally different space, depth, and water quality requirements. Here's how to match the RAINBOW round tank range to the most common farmed species:

Tilapia (Nile Tilapia, Mozambique Tilapia)

The most widely farmed freshwater species globally. Tilapia is tolerant of high stocking densities in well-aerated systems. A 3.0m × 1.0m round PVC tank holds approximately 7,000 litres — sufficient for 300–400 kg of harvest-weight tilapia at moderate intensive stocking. For serious commercial production, the 4.0m or 5.0m diameter tanks are the correct starting point.

Catfish (African Catfish, Channel Catfish)

Catfish tolerate high stocking densities but require consistent aeration and water exchange. The 2.5m × 1.0m tank is an excellent entry point for small commercial operations, with the 3.0m diameter preferred for operators targeting 400kg+ per production cycle.

Shrimp Fry and Hatchery Operations

Shrimp hatcheries and juvenile rearing require precise water quality control over large surface areas. The round tank's circular geometry supports uniform water circulation — the 2.0m and 2.5m diameter sizes are widely used for shrimp nursery phases.

Aquaponics Integration

The RAINBOW round tank integrates directly into aquaponics systems, pairing with grow beds via a bottom drain outlet. The 2.0m or 2.5m diameter provides the fish biomass necessary to generate sufficient waste nutrients for medium-scale vegetable production systems.

Why the Round Shape Outperforms Square and Rectangular Tanks

The circular geometry of the RAINBOW tank isn't an aesthetic choice — it delivers measurable operational advantages over square or rectangular tank designs:

Water circulation — Round tanks with a centrally positioned aeration or inlet point create a consistent circular current that carries waste solids toward the centre drain outlet. This self-cleaning property significantly reduces the manual cleaning effort compared to square tanks where dead zones in corners accumulate organic waste.

Structural integrity — A circular structure distributes water pressure uniformly around the entire perimeter. Square and rectangular tanks concentrate stress at corners — a structural weakness that becomes increasingly significant at larger volumes.

Fish behaviour — Many farmed fish species naturally school in circular patterns. Round tanks support these natural movement patterns, reducing stress-related behaviours and improving feed conversion.

Why PVC Liner with Metal Frame Outperforms Concrete Ponds

For decades, concrete was the default material for permanent aquaculture ponds and for large, fixed, long-term installations, concrete still has its place. But for the majority of small to medium-scale aquaculture operators, the RAINBOW PVC fish tank with metal bracket frame offers significant advantages:

Installation speed — A concrete pond takes days or weeks to construct. The RAINBOW metal frame + PVC liner tank assembles in hours, with no mixing, curing, or specialist labour required.

Relocation — If your operation moves, expands, or reorganises, the RAINBOW tank disassembles and moves with you. A concrete pond stays exactly where it was poured.

Non-toxic fish safety — The PVC liner is food-safe and non-toxic, ensuring no chemical leaching into the water column that could affect fish health or product quality.

Cost — A concrete pond of equivalent volume costs 3–5× more in materials and labour than the equivalent metal frame + PVC liner system.

Product Specifications

FAQ

Q1: How do I calculate the correct stocking density for my target species and tank volume? Start with your target harvest weight per production cycle, divide by your target stocking density (kg/m³) for your species and aeration system, and convert to tank volume — this gives you the minimum tank volume required; always size up by 15–20% to allow room for growth variability and to avoid stressing fish as they approach harvest weight.

Q2: Can the metal frame and PVC liner handle the continuous water pressure of a full tank over years of operation? Yes — the metal bracket frame is engineered to distribute the structural load of a full water column, and the 560gsm or 650gsm PVC liner is rated for 5–10 years of continuous aquaculture use without degradation under normal operating conditions.

Q3: How does the round tank's drainage system work, and can it be configured for self-cleaning? The tank is fitted with a side or bottom drain valve; when combined with a central bottom drain and tangential water inlet positioned to create a circular current, the system becomes self-cleaning — waste solids are carried toward the centre drain outlet continuously during operation.

Q4: Is the PVC liner safe for fish that will be consumed by humans? Yes — the non-toxic PVC liner is food-safe and does not leach harmful compounds into the water column, making it suitable for aquaculture production of fish intended for human consumption.

Q5: How many tanks can be operated simultaneously with a single aeration and filtration system? This depends on your aeration capacity and the total water volume across all tanks — many operators run 4–8 same-size tanks on a shared filtration loop, sizing the system for total biomass rather than individual tanks.

Q6: Can custom sizes be ordered for large-scale commercial projects? Yes — RAINBOW offers full OEM and ODM customization for diameter, height, liner thickness, colour, and outlet configuration for large commercial aquaculture projects; contact the team directly for specifications and pricing.

What Customers Are Saying

⭐⭐⭐⭐⭐ Emmanuel O. — Lagos, Nigeria "Running six 3.0m round RAINBOW tanks for tilapia production — the circular current keeps solids moving to the centre drain and manual cleaning has dropped to almost nothing, production is up 40% from my previous concrete ponds."

⭐⭐⭐⭐⭐ Nguyen T. — Mekong Delta, Vietnam "Switched from rectangular concrete tanks to four RAINBOW 2.5m round PVC tanks for catfish — the assembly took one afternoon, the fish are less stressed in the round environment, and the water quality management is much simpler."

⭐⭐⭐⭐⭐ Sarah M. — Devon, UK "Using two 2.0m diameter tanks for a koi breeding operation — the quality of the PVC liner and the metal frame stability are both excellent, and the tanks have held up perfectly through two full English winters outdoors."

Case Studies

Case Study 1 — Commercial Tilapia Farm Expansion, Accra, Ghana

A tilapia farmer in Accra running two aging concrete ponds replaced them with eight RAINBOW 3.0m round PVC fish tanks as part of a production expansion; the entire installation was completed in two days by a three-person crew with no specialist construction equipment, production capacity increased from 800kg to 2,400kg per cycle, and the self-cleaning circular drainage system reduced water exchange requirements by 30% compared to the previous rectangular concrete pond layout directly lowering operating costs.

Choose the Right Size

The RAINBOW Round Fish Tank with Metal Frame and PVC Liner is built to grow with your aquaculture operation. Start with the size that matches your current species, stocking density, and production goals then add units as your operation expands, using the same infrastructure, the same management protocols, and the same parts across your entire tank fleet.

Right-sizing your tank from the beginning is the decision that determines everything that comes after it.
